TP-250​

TP-250​

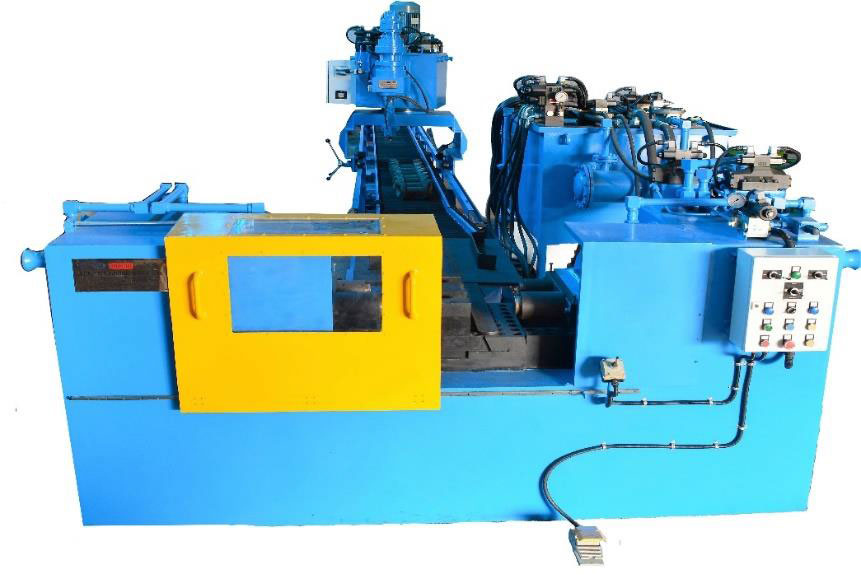

SIMPLETEC TP-250 is designed for assembly/ disassembly of small, medium and medium-large sizes of Track Chains. The maximum pressing force of each ram is 2450 kN (250 T). The machine is suitable for manufacturing new chains and for rebuilding/ re-conditioning. The operation of the machine is simple and safe. Complete machine operations can be done by few feather touch joysticks. The rams can be operated either simultaneously or separately. Machine can be supplied with Track Winder, Hydraulic Torque Wrench, Roller & Idler welding Machine, etc.

Specification

Model Pressing Force Maximum Pitch Winch Capacity Weight Connected Load
TP-250
250 t / 2450 kN
242 mm
4000 kg
6395 kg
15 kw
